- Suitable for liquids and gases
- High pressure proof
- High temperature proof
- High precision
- Wide application
- User friendly, easy maintenance
- High / low alarm contact
| Diameter: | DN15 – DN150 |
| Tube material: | SS304 / SS316L |
| Display indicator: | 1) Flow rate field display 2) Flow rate field display with 4-20mA output 3) Totalizer with flow rate LCD display, 4-20mA output |
| Power supply: | 24V DC (For LCD Display) / Battery Type (Without output) |
| Installation: | Vertical / Horizontal |
| Alarm contact (optional): | High / Low |
| Connection: | Flange type |
| Measuring medium: | Fluids, steam and gases |
| Operating range: | 1) Water: 1 to 150000 L/H 2) Air: 0.07 to 2500 Nm3/h |
| Accuracy: | Class 2.5 |
| Protection: | IP66 |
| Max pressure: | 1) Standard DN15 – DN80: 40 Bar, DN100 – DN150: 16 Bar 2) Special DN15 – DN50: 25 Bar, DN80 – DN150: 16 Bar |
MEASURING RANGE
| DN (mm) | Measuring Range | ||
| Water (L/h) | Air (Nm3/h) | ||
| Normal Type | Corrosion-Proof Type | Normal / Corrosion Proff | |
| 15 | 2.5 – 25 | / | 0.07 – 0.7 |
| 4.0 – 40 | 2.5 – 25 | 0.11 – 1.1 | |
| 6.3 – 63 | 4.0 – 40 | 0.18 – 1.8 | |
| 10 – 100 | 6.3 – 63 | 0.28 – 2.8 | |
| 16 – 160 | 10 – 100 | 0.48 – 4.8 | |
| 25 – 250 | 16 – 160 | 0.7 – 7 | |
| 40 – 400 | 25 – 250 | 1.0 – 10 | |
| 63 – 630 | 40 – 400 | 1.6 – 16 | |
| 25 | 63 – 630 | 40 – 400 | 1.6 – 16 |
| 100 – 1000 | 63 – 630 | 3 – 30 | |
| 160 – 1600 | 100 – 1000 | 4.5 – 45 | |
| 250 – 2500 | 160 – 1600 | 7 – 70 | |
| 400 – 4000 | 250 – 2500 | 11 – 110 | |
| 50 | 630 – 6300 | 400 – 4000 | 18 – 180 |
| 1000 – 10000 | 630 – 6300 | 25 – 250 | |
| 1600 – 16000 | 1000 – 10000 | 40 – 400 | |
| 80 | 2500 – 25000 | 1600 – 16000 | 70 – 700 |
| 4000 – 40000 | 2500 – 25000 | 100 – 1000 | |
| 100 | 6300 – 63000 | 4000 – 40000 | 160 – 1600 |
| 10000 – 100000 | 6300 – 63000 | 250 – 2500 | |
| 125 | 12000 – 120000 | / | / |
| 150 | 15000 – 150000 | / | / |

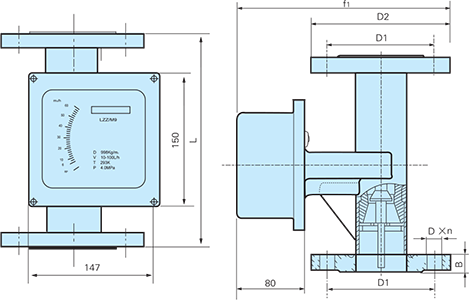

DIMENSIONS
| DN (mm) | L | B | D1 | D2 | f2 |
| 15 | 250 | 14 | 65 | 95 | 208 |
| 25 | 250 | 18 | 85 | 115 | 218 |
| 40 | 250 | 20 | 110 | 150 | 233 |
| 50 | 250 | 22 | 125 | 165 | 240 |
| 80 | 250 | 24 | 160 | 200 | 238 |
| 100 | 250 | 26 | 180 | 220 | 268 |
| 150 | 300 | 28 | 240 | 285 | 300 |
The Flowtech KF800 series variable area flow meter is intended for measuring and monitoring fluid or gases media of any type.
KF800 series metallic rotameter operates according to the proven variable area flowmeter with simple structure, work reliable, wide application, high precision, and convenient installation. This series of all stainless steel flow meter provide with scale in local field display.
Additionally, it can also be equipped with contacts or an analog output 4-20mA signal output, totalizer with flow rate LCD display and restrict alarm. It is suitable for chemical industry, petroleum, metallurgy, power plant, environmental protection, medical science and many others.
