- Suitable for liquids and gases
- No restriction on installation orientation
- High precision
- Wide application
- User friendly, easy maintenance
- Built-in isolation valve option for maintenance purpose
| Diameter: | DN15 – DN300 |
| Pipe material: | Polyurethane / SS304 |
| Display indicator: | Flow rate field display |
| Power supply: | Not required |
| Installation: | Vertical / Horizontal |
| Connection: | Wafer Type, Threaded Type, Flanged Spool-piece |
| Measuring medium: | Fluids and gases |
| Operating temperature: | 1) Polyurethane: 0 to 60°C 2) SS304: 0 to 120°C |

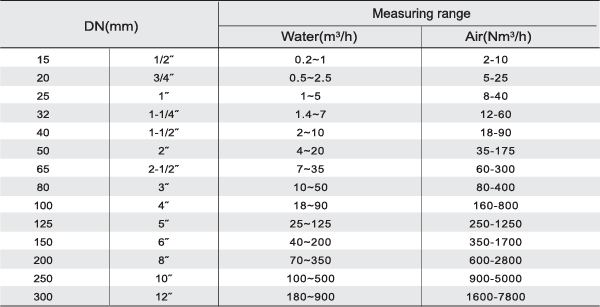

| Operating range: | 1) Water: 0.08 to 900m3/h 2) Air: 0.8 to 7800 Nm3/h |
| Accuracy: | Class 2.5 |
| Max pressure: | 10 Bar |
The KF600 series orifice plate flow meter is intended for measuring and monitoring fluid or gases media of any type. KF600 series orifice plate flow meter operates according to the proven differential pressure flowmeter theory with simple structure, work reliable, wide application, high precision, and convenient installation.
