- KFS Standard: Stainless steel case with bayonet lock, IP66
- For gases and liquids
- DN 25 to DN 600
- Carbon steel, Stainless steel, PVC, PPH, PVDF
- Horizontal or vertical mounting
- Independent of viscosity
- ATEX version (optional)
- Applications: On-line visualization of the instantaneous flow rate in multiple fields: Water treatment, chemical industry, industrial processes, etc. The measurement is independent of viscosity and is suitable for indicating the flow of water, alkaline solutions and gases.
| Accuracy: | 5 % F.S. |
| Scale units: | /h or m³/h or else on request |
| Scale factor: | Minimum 1:10 |
| Protection: | Indicator: IP 66 |
| Corrosion protection: | Carbon steel version: Epoxy painted, kiln-dried, blue (RAL 5017), satin finish Corrosion class: C2 |
| Wafer mounting: | Standard body width: 50 mm 60 mm for PVC / PP / PVDF & DN 250-300 |
| Fittings: | Between flanges, type DIN EN 1092-1, PN 6/10/16/25/40 On request: ASME B16.5, JIS B 2220 (others on request) |
CONTACT OUTPUTS
Reed contacts, RK1 and RK2:
| RK1: | 1 Reed contact, bistable, or N.O. or N.C |
| RK2: | 2 Reed contacts, bistable, N.O. or N.C. |
| Switching power: | Max. 5 VA ; 0.25 A / 50 V AC Maxi 3 W ; 0.25 A / 75 V DC |
| Ambient temperature: | -25 to +105 °C |
Note: The switching point is adjustable over the full measuring range. The pointer of the indicator activates a built-in inductive switch by means of a metal paddle. The switching point is indicated by a pointer on the flow-meter scale.
Inductive contacts, IK1 and IK2 (NAMUR, 2-wire):
| IK1: | 1 Inductive contact, NAMUR, 2-wire, bistable, or N.O. or N.C. |
| IK2: | 2 Inductive contacts, NAMUR, 2-wire, bistable, N.O. or N.C |
| Slot width: | 2.0 mm |
| Hysteresis: | 1.0 % v. E to 10 % v. E |
| Accuracy: | Repeatability: ≤ 2.0 % |
| Temperature drift: | -25 to +70 °C |
| Voltage: | Nom. 8.2 V DC via insulation switching amplifier KFA) |
| Switching frequency: | ≤ 2.5 kHz |
| Power consumption: | Active area uncovered: ≥ 2.1 mA Active area covered: ≥ 2.1 mA |
| Protection: | Against reverse polarity |
| Certification: | KEMA 02 ATEX 1090 X |
| Inductance (Li): | 266 µH |
| Capacitance (Ci): | * Values for pre-assembled cables up to 10 m |
| ATEX cert. : | Ex II 1G Ex ia IIC T4…T6 Ga (Max. Ui = 20 V DC; li = 60 mA; Pi = 130 mW) |
| Option: | Explosion proof version |
Inductive contacts, IKS1 and IKS2 (3-wire):
| IKS1: | 1 Inductive contact, bistable, or N.O. or N.C. |
| IKS2: | 2 Inductive contacts, bistable, N.O. or N.C. |
| Power supply: | 24 V DC |
| Current switched I(A): | ≤ 100 mA |
| Power consumption: | Open circuit: ≤ 10 mA |
| Ambient temperature: | -25 to +70 °C |
| Voltage drop (at I max.): | ≤ 1.2 V |

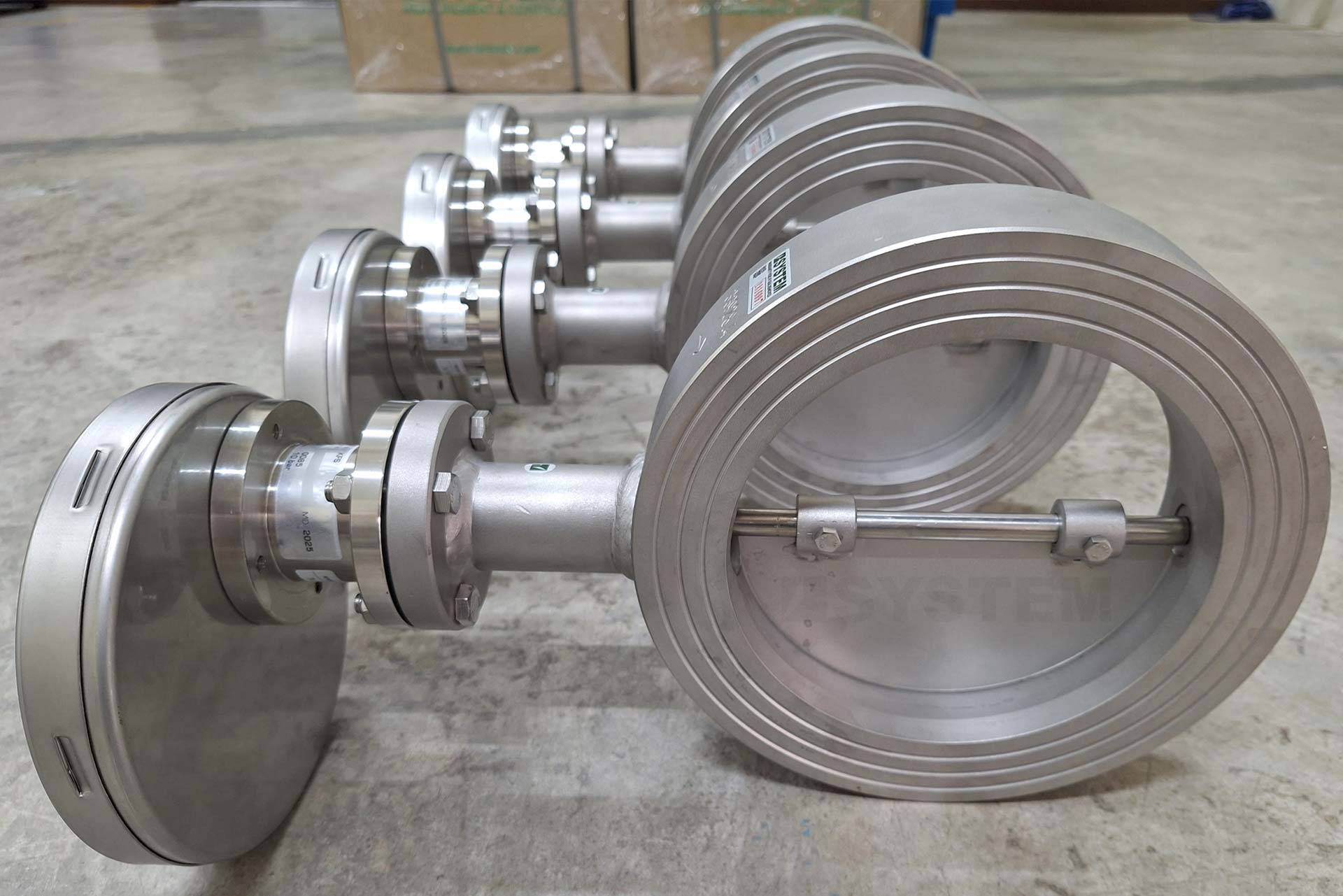

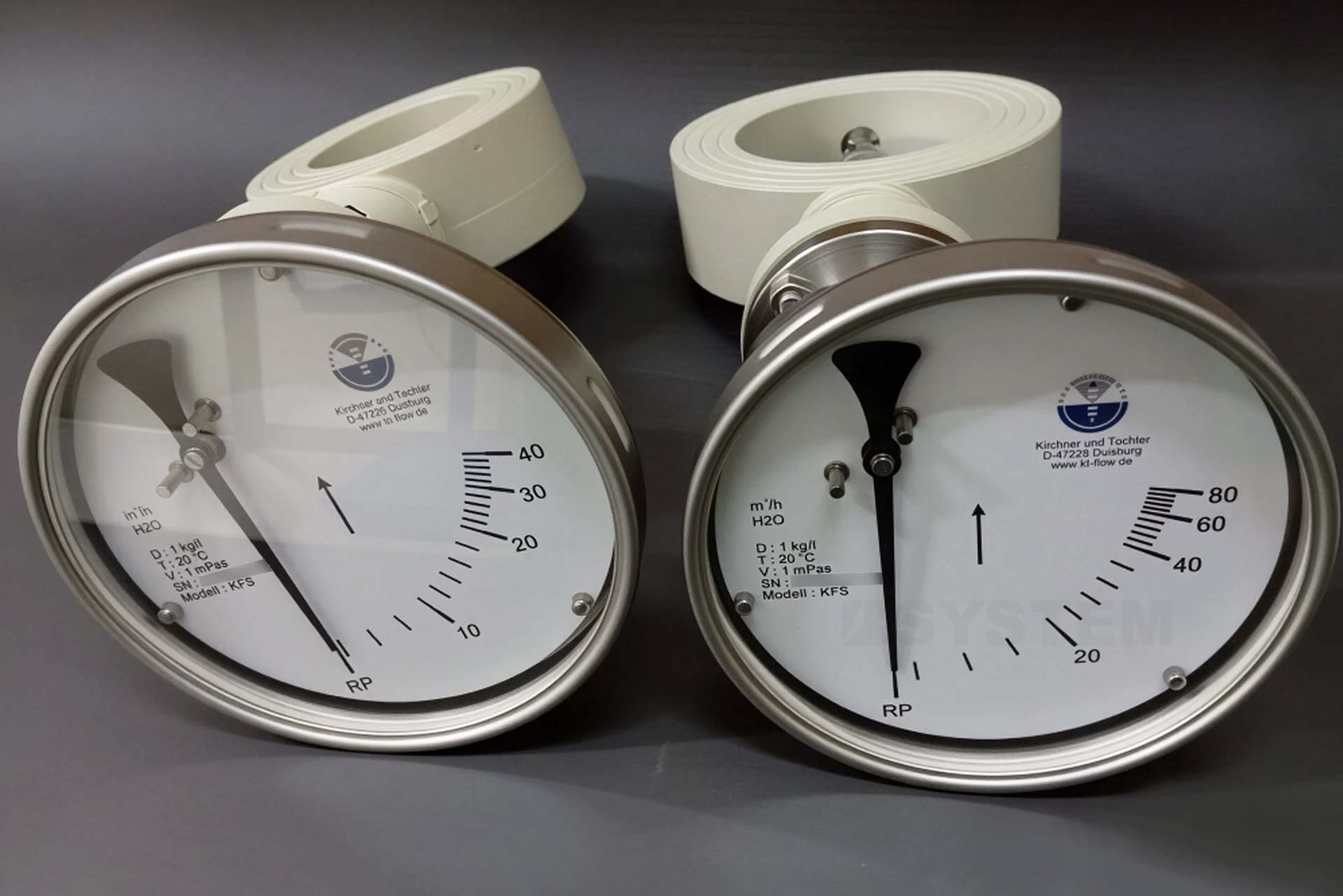

BAMO KFS flap string-loaded type flowmeter is used to evaluate flows in piping from DN25 up to DN600. Each flow indicator is calibrated according to customer requirements and equipped with a scale specific to the medium.

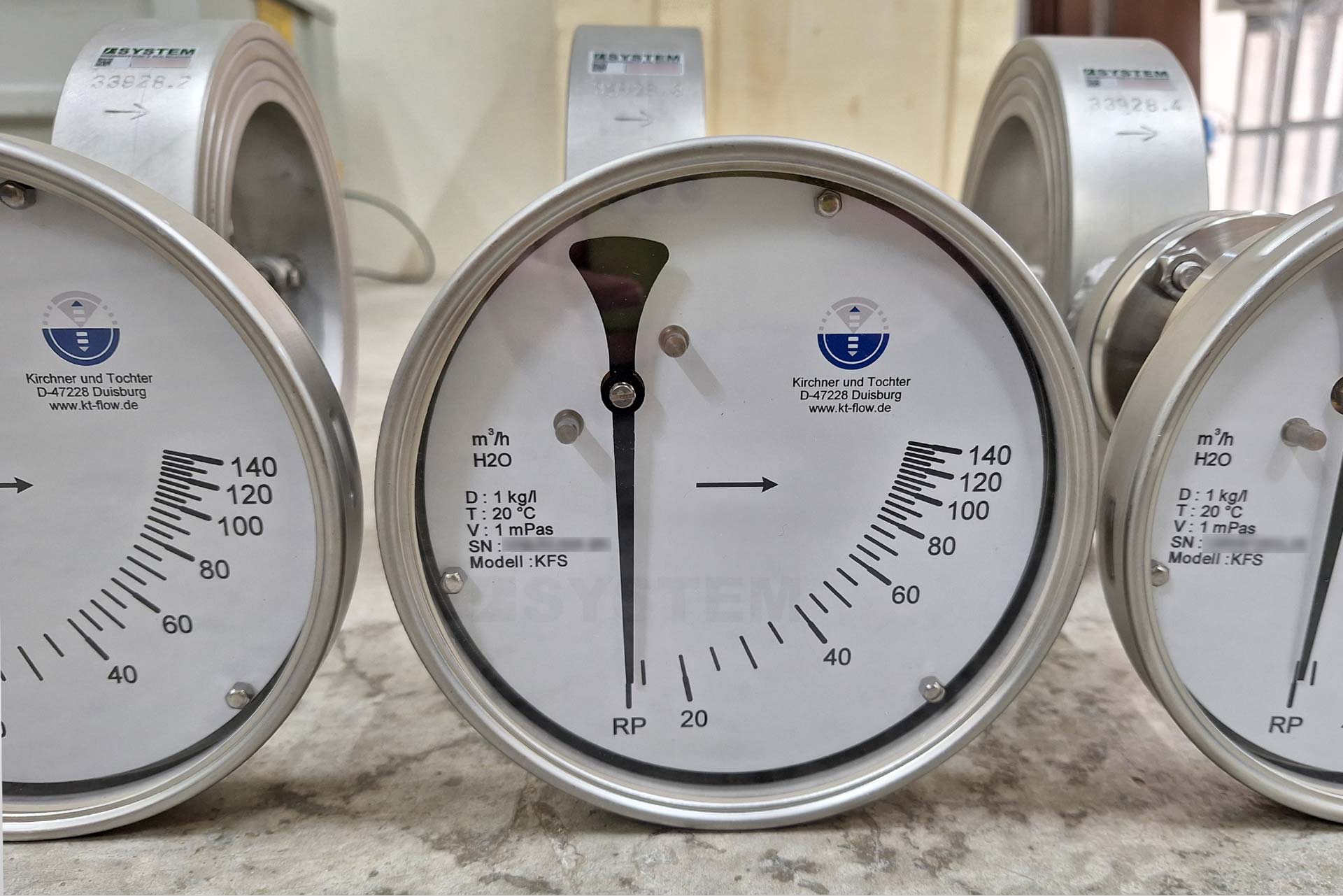

The measuring cell includes a flap spring-loaded moved by the medium. The angle of rotation of the flap changes according to the flow. A magnetic coupling transfers the movement to a pointer on a dial.
Options: Contact outputs: For process control purposes, the measuring device can be equipped with contacts, inductive or Reed type. Each contact (max. 2) is adjustable over the entire measurement range.
